UL3321 XLPE Insulated Wire

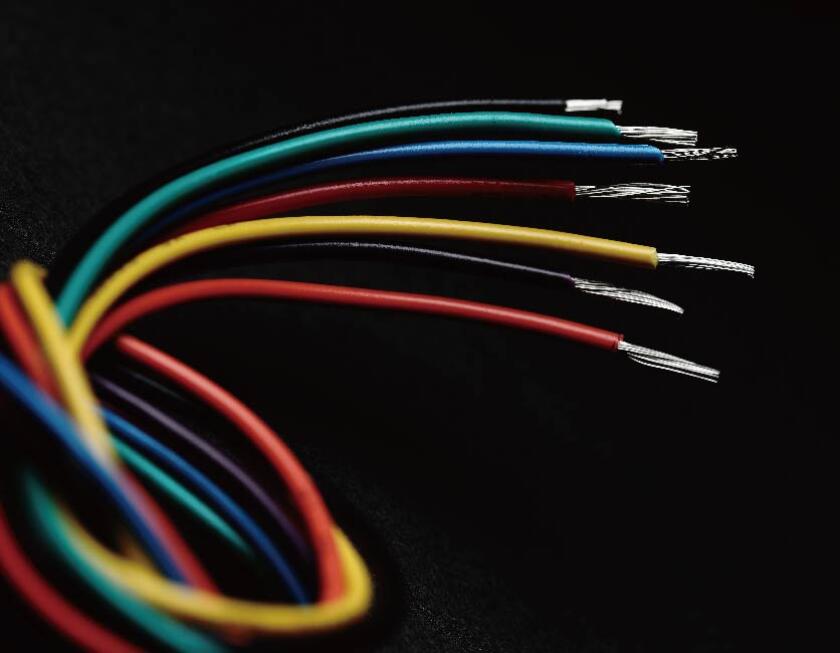

UL3321 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 150°C and 600V, this wire is designed for internal wiring in electronic and electrical equipment where high heat resistance, voltage stability, and flame performance are critical.
UL3321 XLPE Insulated Wire – 150°C / 600V Hook-Up Wire for High-Temperature Applications
UL3321 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 150°C and 600V, this wire is designed for internal wiring in electronic and electrical equipment where high heat resistance, voltage stability, and flame performance are critical.

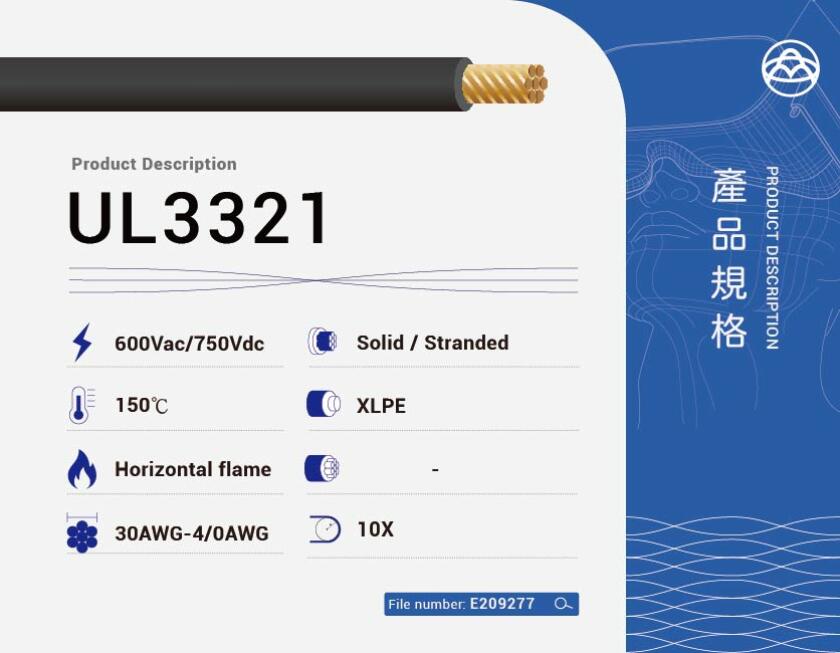

Key Features
Conductor: Solid or stranded bare or tinned copper, available in sizes from 30 AWG to 4/0 AWG
Insulation: Extruded XLPE with thickness varying by AWG size:
30–9 AWG: 30 mils average, 27 mils minimum
8–4 AWG: 45 mils average, 40 mils minimum
3–2 AWG: 60 mils average, 54 mils minimum
1–4/0 AWG: 80 mils average, 72 mils minimum
Temperature Rating: Up to 150°C
Voltage Rating: 600V AC / 750V DC
Flame Resistance: Passes UL Horizontal Flame Test
Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 3321
Usage: Designed for internal wiring in electronic and electrical equipment
Common Applications
Internal wiring in electronic devices and instrumentation
Applications requiring high heat resistance and high-voltage performance
Internal connections in industrial control panels and machinery
Suitable for motors, transformers, heating systems, and lighting systems
External Technical Reference
Need assistance selecting the right wire?
Our technical team is ready to help you choose the best UL3321 cable for your project.
