UL3289 single-conductor wire with XLPE insulation, UL-certified and rated 150°C/600V. Provides heat resistance, voltage stability, and flame performance for internal wiring.


UL3289 XLPE Insulated Wire – 150°C / 600V Halogen-Free Hook-Up Wire for High-Temperature Applications

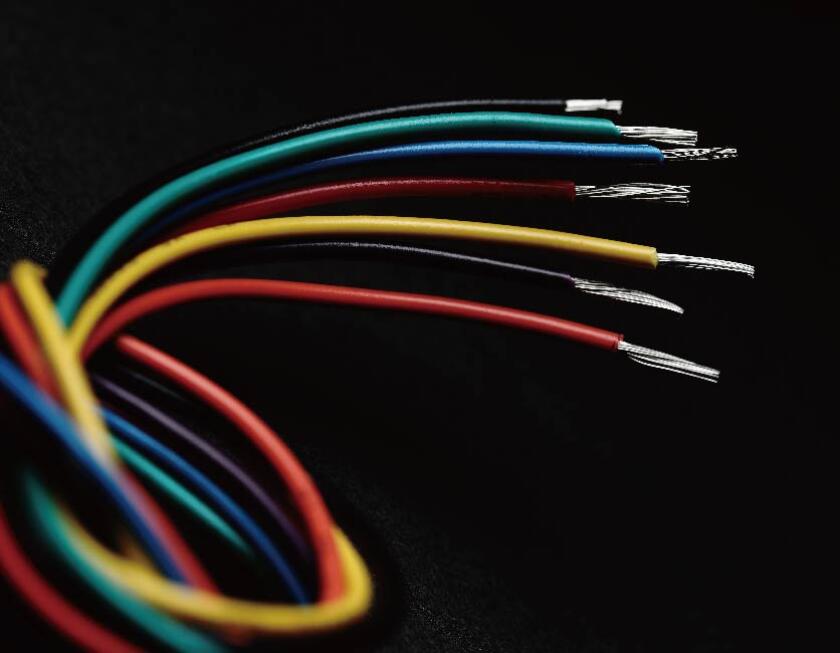

UL3289 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 150°C and 600V, this wire is designed for internal wiring in electronic and electrical equipment where high heat resistance, voltage stability, and flame performance are critical.

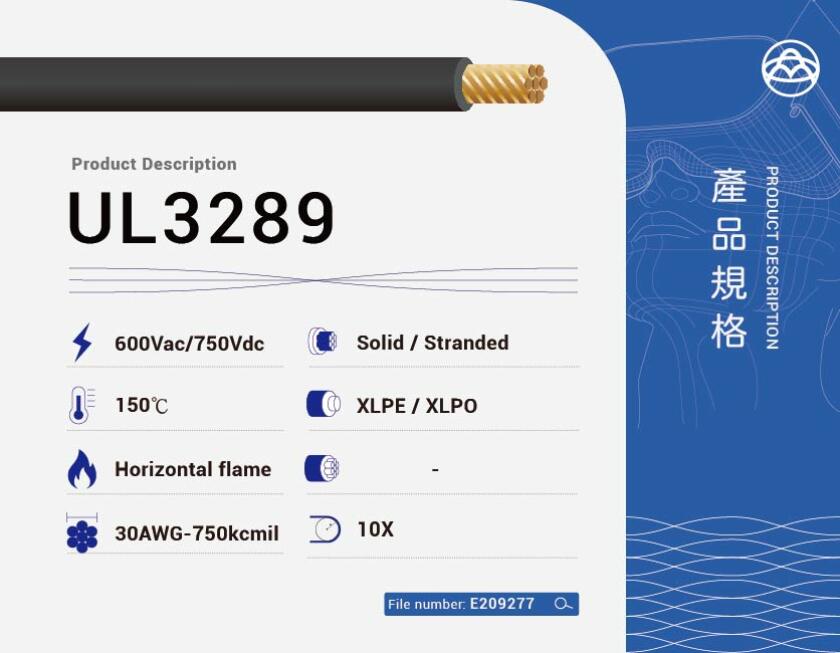

Key Features

  • Conductor: Solid or stranded bare or tinned copper, available in sizes from 30 AWG to 4/0 AWG

  • Insulation: Extruded XLPE with a nominal thickness of 0.76 mm (30 mils)

  • Temperature Rating: Up to 150°C

  • Voltage Rating: 600V AC / 750V DC

  • Flame Resistance: Passes UL VW-1 and CSA FT1 vertical flame tests

  • Environmental Compliance: RoHS and REACH compliant, halogen-free

  • Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 3289

  • Usage: Designed for internal wiring in electronic and electrical equipment


Common Applications

  • Internal wiring in electronic devices, medical equipment, and instrumentation

  • Applications requiring high heat resistance and high-voltage performance

  • Internal connections in industrial control panels, motors, and transformers

  • Suitable for lighting systems, heating equipment, and household appliances
