AV

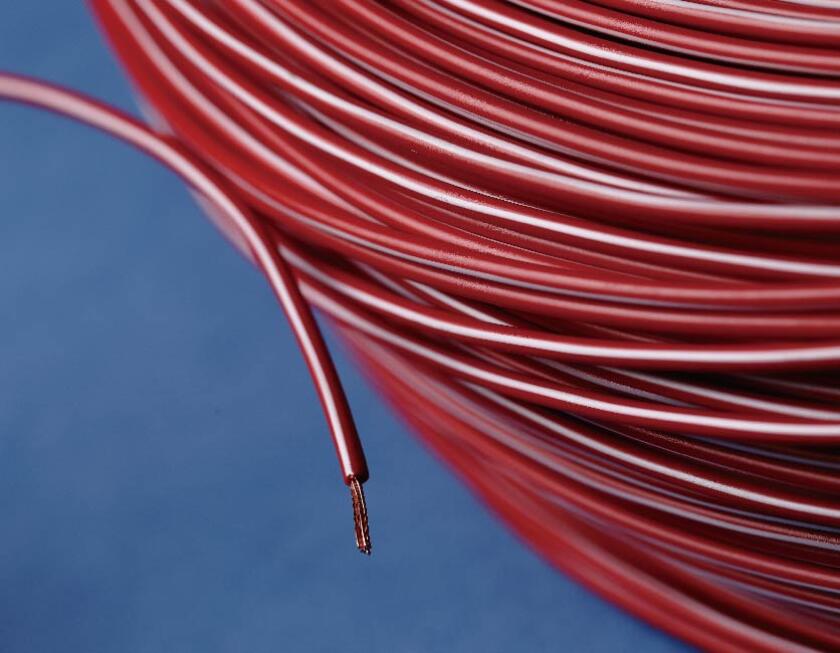

AV automotive wire with PVC insulation, JIS C 3406/JASO D611 compliant and rated 80°C/60V. Provides reliable low-voltage performance for lighting, sensors, and dashboards.
AV Automotive Wire – Standard PVC 80°C Wire for Vehicle Power & Signal Applications
AV automotive wire is a JIS-standard single-core wire widely used in Japanese and Asian vehicles for low-voltage power and signal transmission. Featuring standard-wall PVC insulation, AV wire provides dependable performance in general-purpose automotive applications such as lighting, switches, sensors, and dashboard electronics.
Manufactured in accordance with JIS C 3406 and JASO D611, AV wire is rated for 80°C continuous operation and 60V, making it a cost-effective solution for automotive harnesses not exposed to high temperatures.
Features
Conductor: Stranded bare copper (standard automotive grade)
Insulation: Standard PVC (polyvinyl chloride)
Temperature Rating: -40°C to 80°C
Voltage Rating: 60V (automotive low-voltage systems)
Construction: Thick-wall PVC for durability and easy crimping
Color Coding: Wide range of solid and stripe color options
RoHS Compliant: Lead-free and halogen-free variants available
Common Applications
Wiring in interior lighting, switches, horn, and signal systems
Tail lamps, dashboard instruments, and power mirrors
Entry-level car models and motorcycles
Cost-sensitive OEM or aftermarket automotive wiring
Electrical circuits not exposed to engine or high-heat zones
