FLRY-A automotive wire with thin-wall PVC insulation, ISO 6722-1/JASO compliant and rated 105°C/60V. Ideal for body wiring in lighting, sensors, panels, and control units.


FLRY-A Automotive Wire – Thin-Wall 105°C PVC Insulated Wire for Vehicle Power & Signal Circuits

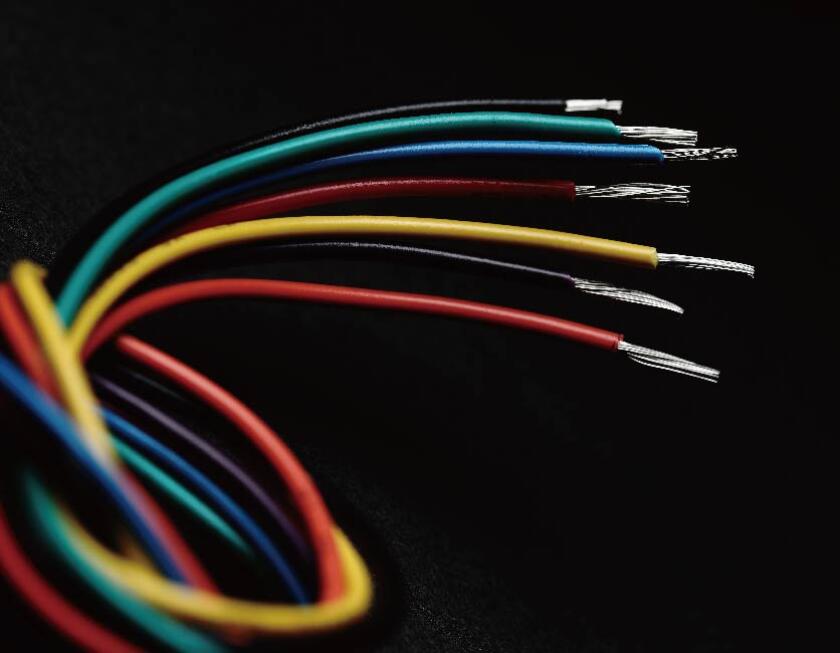

FLRY-A wire is a lightweight, thin-wall automotive primary wire designed for use in passenger vehicles, commercial vehicles, and electric vehicles (EVs). Compliant with ISO 6722-1 and JASO D611, it features a 105°C rated temperature, low-voltage rating (60V), and a PVC insulation with standard-stranded conductor (as opposed to B-type's finer strands). The thin-wall construction allows for space-saving harness design and better weight optimization.

This wire is ideal for automotive body wiring, including lighting, sensors, instrument panels, and control units, offering reliable signal and power transmission with mechanical flexibility and flame resistance.


Key Features

  • Conductor: Standard-stranded bare or tinned copper

  • Insulation: Lead-free PVC (Polyvinyl Chloride), thin-wall

  • Temperature Rating: -40°C to 105°C (continuous operation)

  • Voltage Rating: 60V (nominal automotive low voltage systems)

  • Flame Resistance: ISO 6722

  • RoHS Compliant: Free of hazardous substances

  • Color Options: Multiple solid colors and striped variants available

  • Insulation Thickness: Thinner than conventional AV wires – helps reduce bundle diameter


Common Applications

  • Body harnesses for automotive lighting, doors, dashboard, instrument panels

  • Signal and control wiring in ECUs, BCMs, and sensor systems

  • EV battery monitoring and low-voltage circuit lines

  • Compact cable routing in modern wiring architectures

  • Applications requiring lightweight, space-efficient cable design
