UL21279
UL21279 multi-conductor cable, 600V and 80°C rated, with FRPE jacket and AWM insulation, provides flexible, flame-resistant wiring for electrical equipment.
UL21279 Multi-Conductor Cable – 80°C / 600V for Internal Wiring Applications

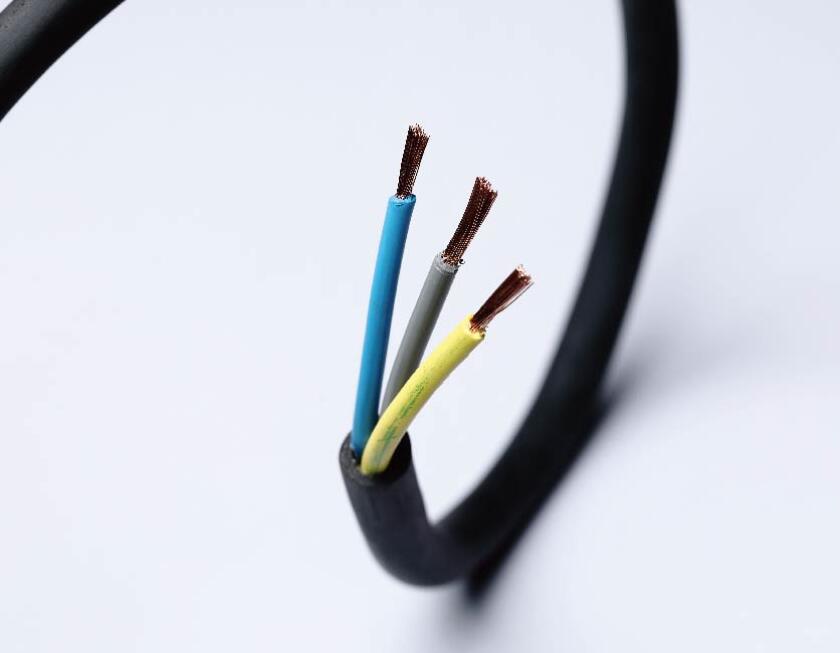

UL21279 is a UL-certified multi-conductor cable designed for internal wiring of electrical equipment. Rated for 80°C and 600V, this cable features solid or stranded copper conductors, insulation complying with the manufacturer's AWM procedure, and an extruded FRPE jacket. It complies with the Horizontal Flame Test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.

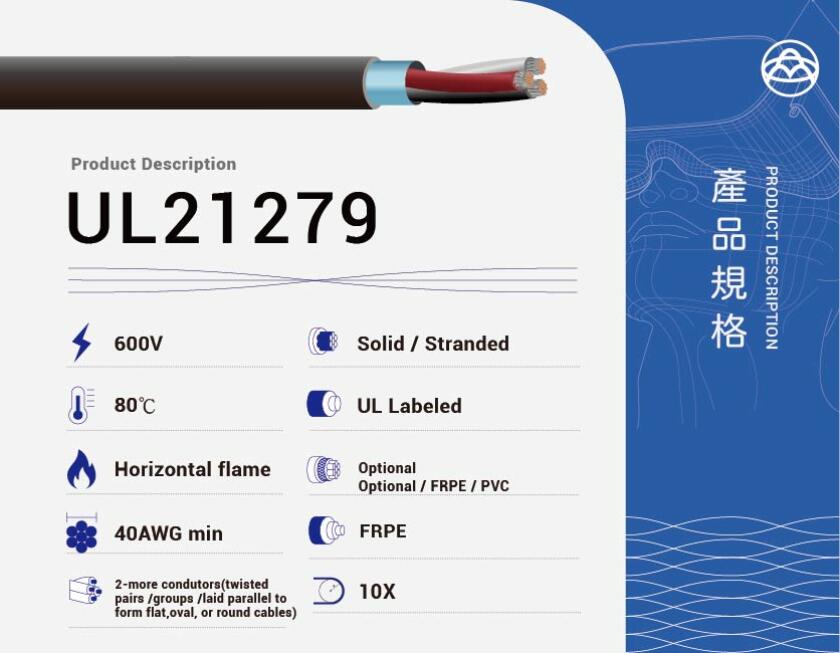

Key Features
Conductor: Solid or stranded copper, 40 AWG minimum
Insulation: Labeled or complying with manufacturer's AWM procedure
Assembly: Two or more conductors, twisted pairs or groups of twisted conductors twisted together. The conductors or groups of conductors may be laid parallel forming a flat, oval, or round cable.
Shield: Optional, over one or more of the insulated conductors or between the conductor assembly and the optional covering
Covering: Optional, extruded FRPE or extruded PVC, 5 mil minimum average thickness, 4 mils minimum thickness at any point
Jacket: Extruded FRPE, 12 mils minimum average thickness, 10 mils minimum thickness at any point
Temperature Rating: 80°C
Voltage Rating: 600V
Flame Resistance: Passes Horizontal Flame Test
Standard: UL 758 AWM Style 21279
Application: Internal wiring of electrical equipment
Applications
Internal wiring in electronic devices
Signal transmission in computers and peripherals
Control wiring in industrial equipment
Applications requiring flexible and flame-retardant wiring solutions
