UL21286
UL21286 multi-conductor cable, 300V and 80°C rated, with FRPE insulation and jacket, offers flexible, flame-resistant external wiring for electronics.
UL21286 FRPE Insulated Cable – 80°C / 300V Multi-Conductor Wire for External Electronic Applications

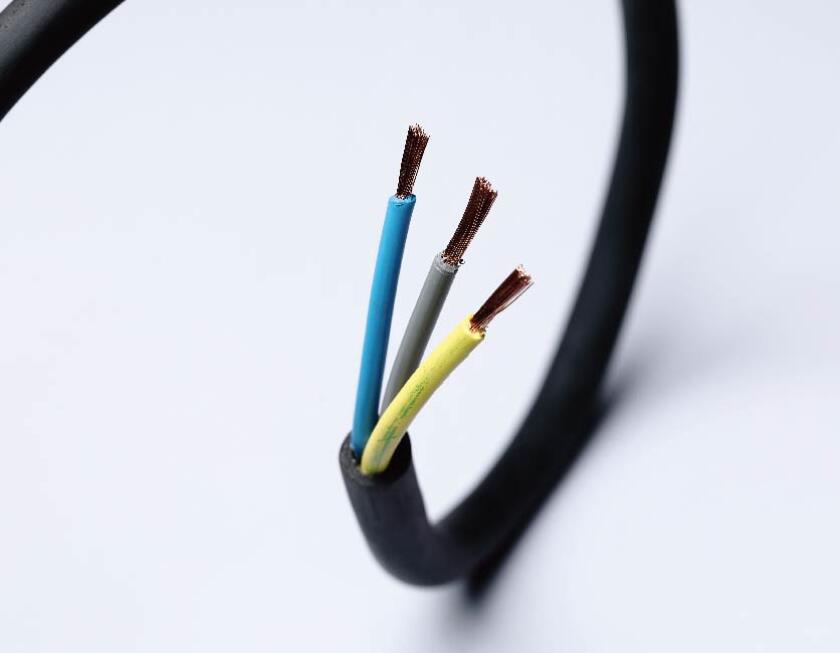

UL21286 is a UL-certified multi-conductor cable designed for the external interconnection of electronic equipment. Rated for 80°C and 300V, this cable features solid or stranded copper conductors, FRPE insulation, and a non-integral jacket. It complies with the Cable Flame Test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.
Key Features
Conductor: Solid or stranded copper, 40 AWG minimum
Insulation: FRPE
Jacket: Extruded FRPE
Temperature Rating: 80°C
Voltage Rating: 300V
Flame Resistance: Passes Cable Flame Test
Standard: UL 758 AWM Style 21286
Application: External interconnection of electronic equipment
Applications
External wiring in electronic devices
Signal transmission in computers and peripherals
Control wiring in industrial equipment
Applications requiring flexible and flame-retardant wiring solutions
