UL3286
UL3286 single-conductor wire with XLPE insulation, UL-certified and rated 105°C/300V. Ensures moderate heat resistance, voltage stability, and flame performance for internal wiring.
UL3286 XLPE Insulated Wire – 105°C / 300V Halogen-Free Hook-Up Wire for Internal Wiring Applications

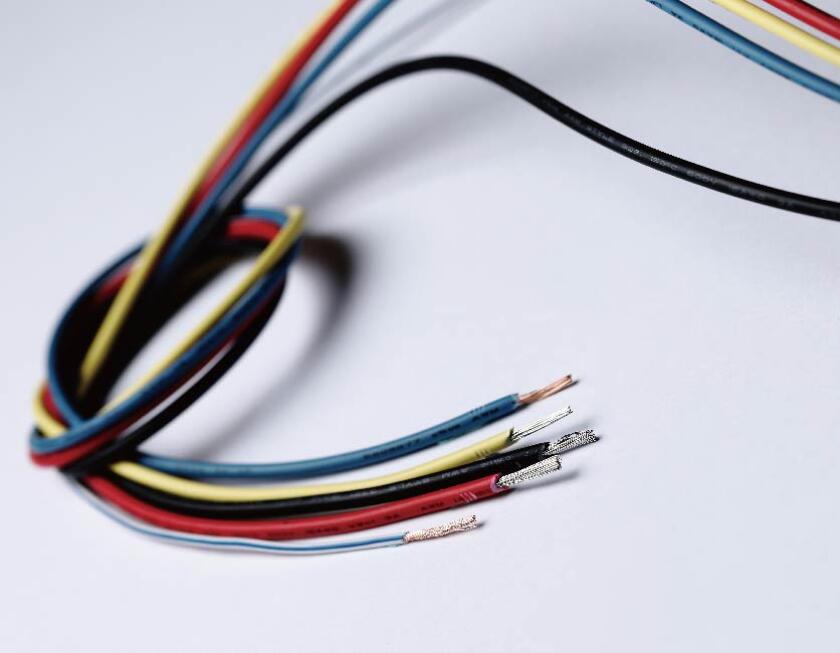

UL3286 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 105°C and 300V, this wire is designed for internal wiring in electronic and electrical equipment where moderate heat resistance, voltage stability, and flame performance are critical.

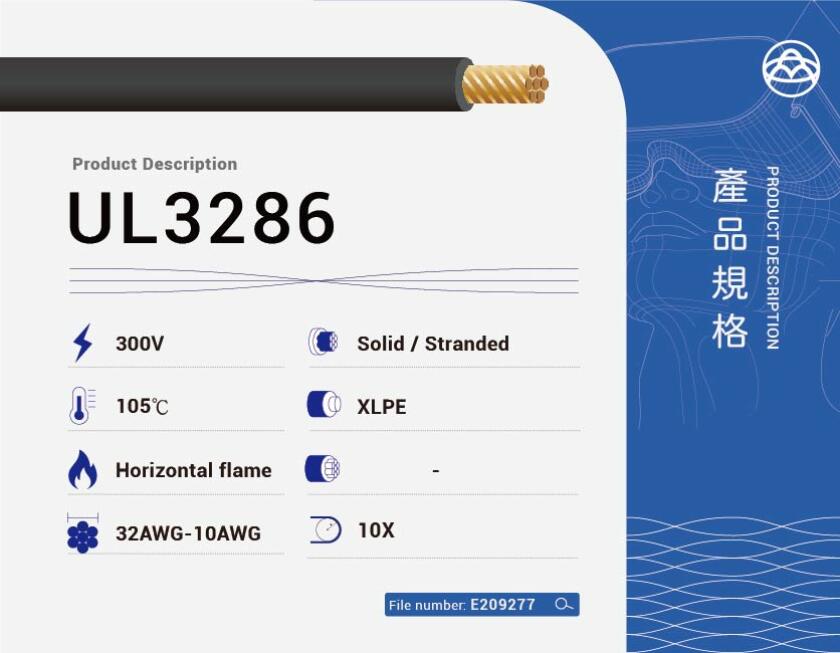

Key Features
Conductor: Solid or stranded bare or tinned copper, available in sizes from 32 AWG to 10 AWG
Insulation: Extruded XLPE with a nominal thickness of 0.41 mm (16 mils)
Temperature Rating: Up to 105°C
Voltage Rating: 300V
Flame Resistance: Passes UL Horizontal Flame Test (UL 1581 VW-1)
Environmental Compliance: RoHS and REACH compliant, halogen-free
Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 3286
Usage: Designed for internal wiring in electronic and electrical equipment
Common Applications
Internal wiring in electronic devices, medical equipment, and instrumentation
Applications requiring moderate heat resistance and high-voltage performance
Internal connections in industrial control panels, motors, and transformers
Suitable for lighting systems, heating equipment, and household appliances
External Technical Reference
Need assistance selecting the right wire?
Our technical team is ready to help you choose the best UL3286 cable for your project.
