UL3135 Flexible Silicone Wire
UL3135 flexible high-temp wire with stranded tinned copper and silicone insulation. Rated 600V, it ensures durability, thermal stability, and reliable insulation.
UL3135 Flexible Silicone Wire｜High-Temperature 200°C 600V Cable｜UL Certified

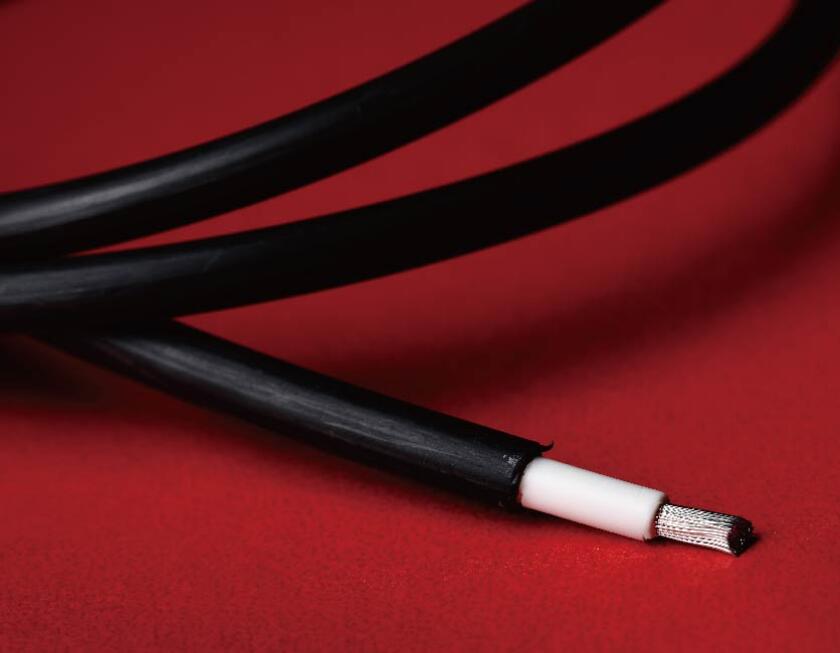

UL3135 is a high-temperature, flexible single-conductor wire featuring stranded tinned copper conductor and silicone rubber insulation. It is widely used in internal wiring applications requiring superior flexibility, thermal stability, and electrical insulation in harsh environments.

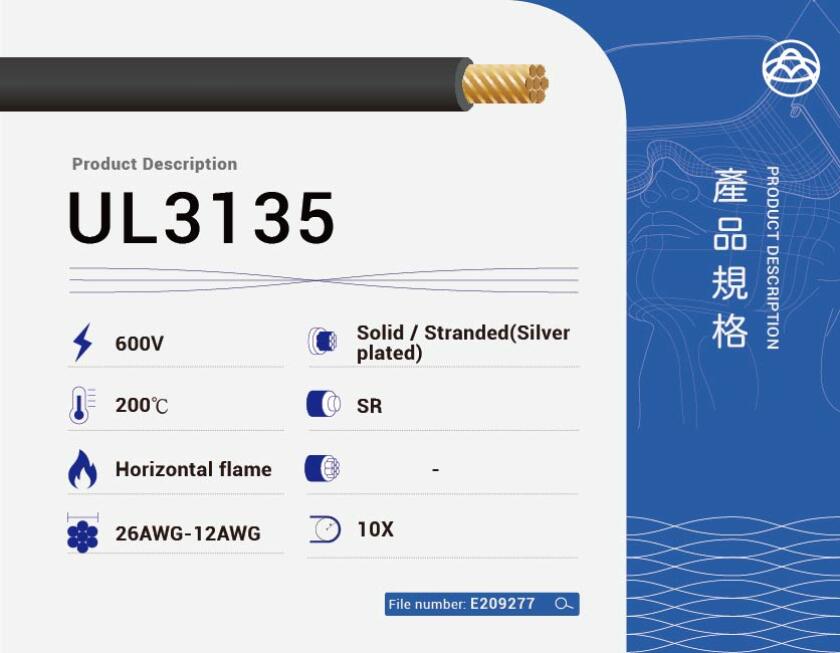

Key Features
- Conductor: Solid / Stranded(Silver plated)
- Insulation: Silicone Rubber
- Rated Temperature: -60°C to +200°C
- Rated Voltage: 600V
- Flame Resistance: Passes Horizontal Flame Test; VW-1 available upon request
- Flexibility: Excellent for dynamic or tight-bend installations
- High Dielectric Strength: Reliable insulation for high-temperature conditions
Typical Applications
- Internal wiring of high-temperature appliances and heating systems
- Control and signal wiring in EV chargers (not for main high-voltage circuits)
- Internal wiring in industrial automation and machinery
- Sensor and actuator control wiring in automotive and robotics (non-powertrain systems)
